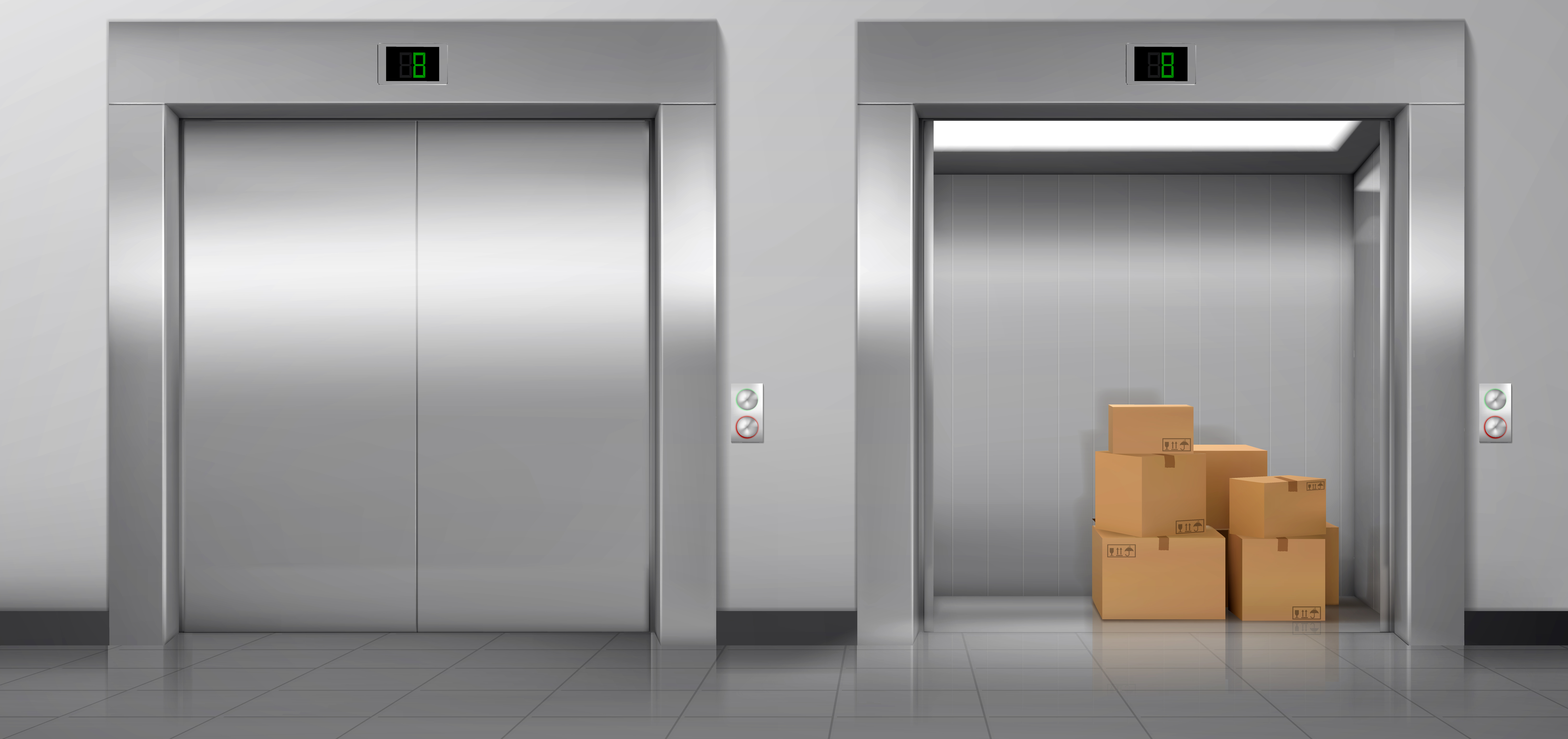

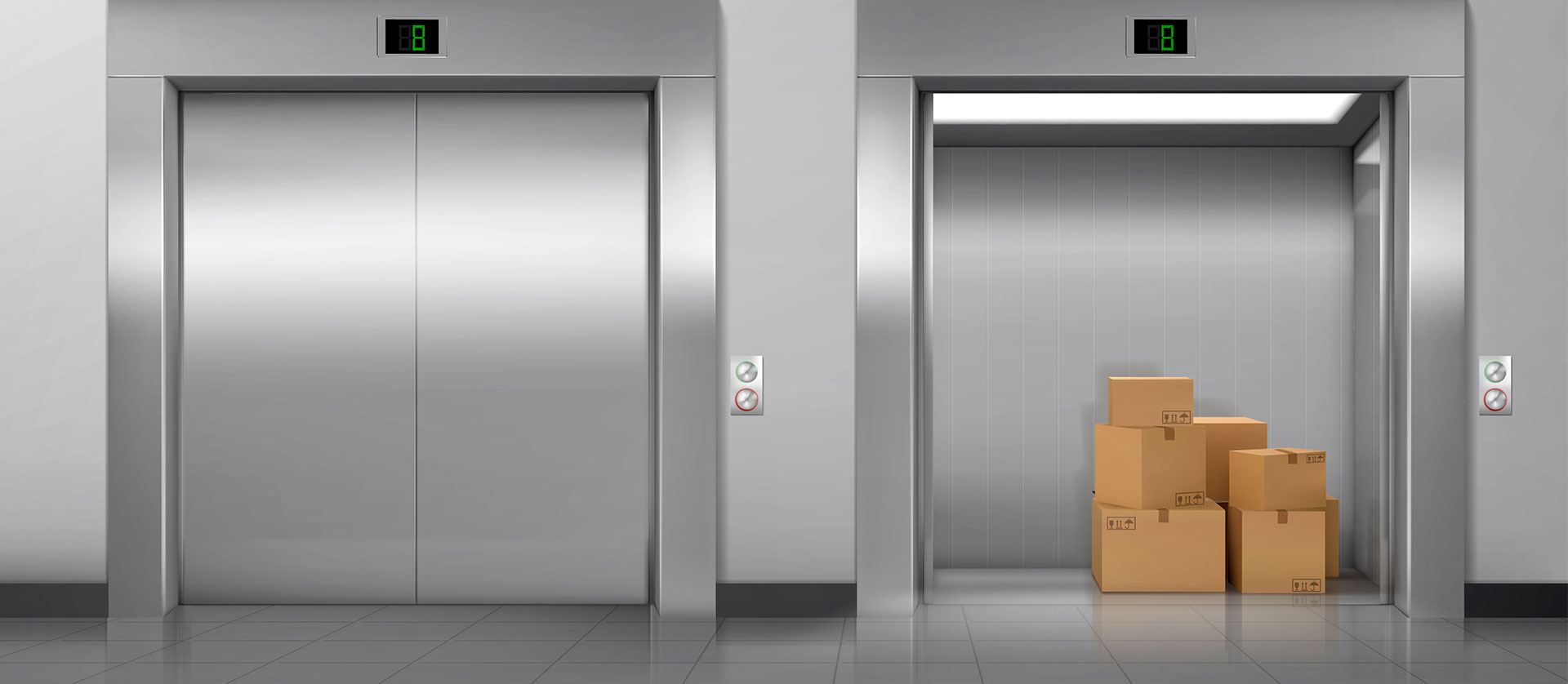

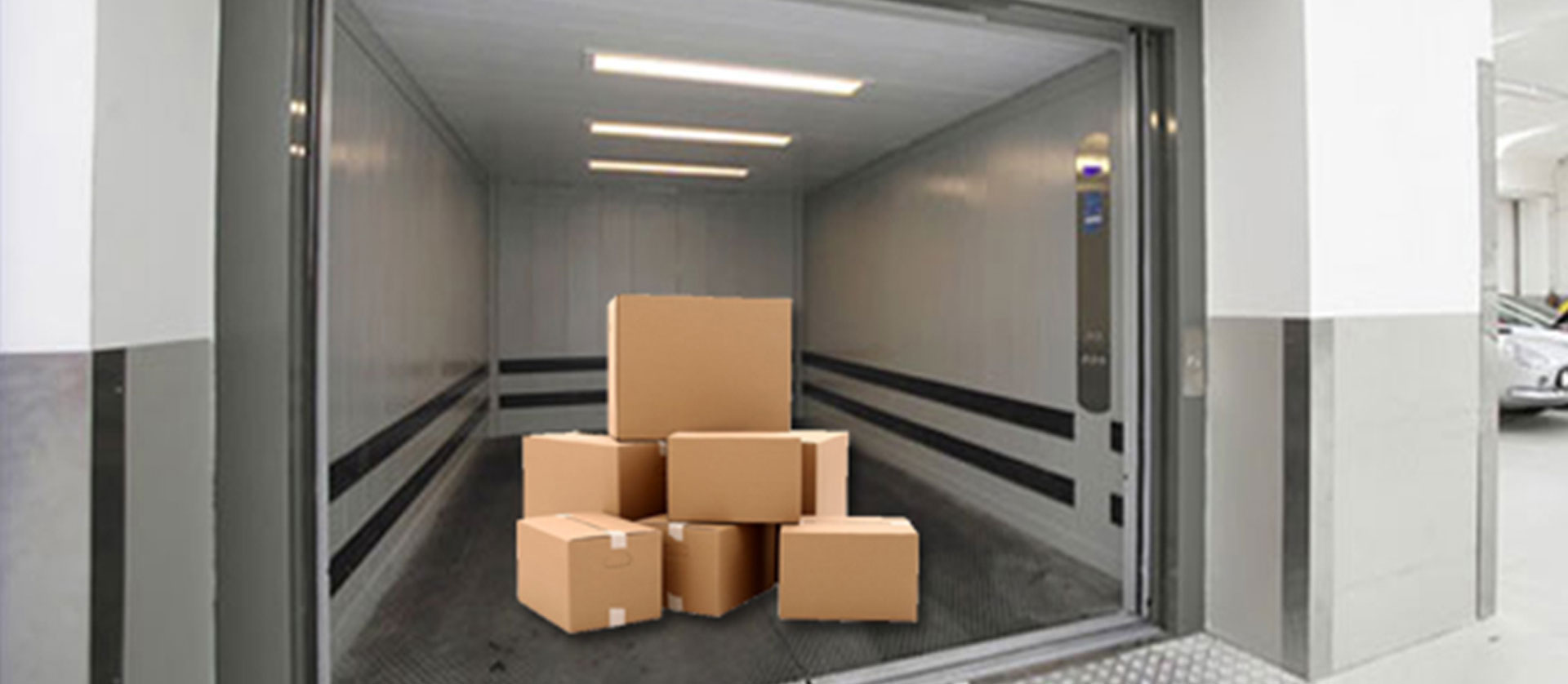

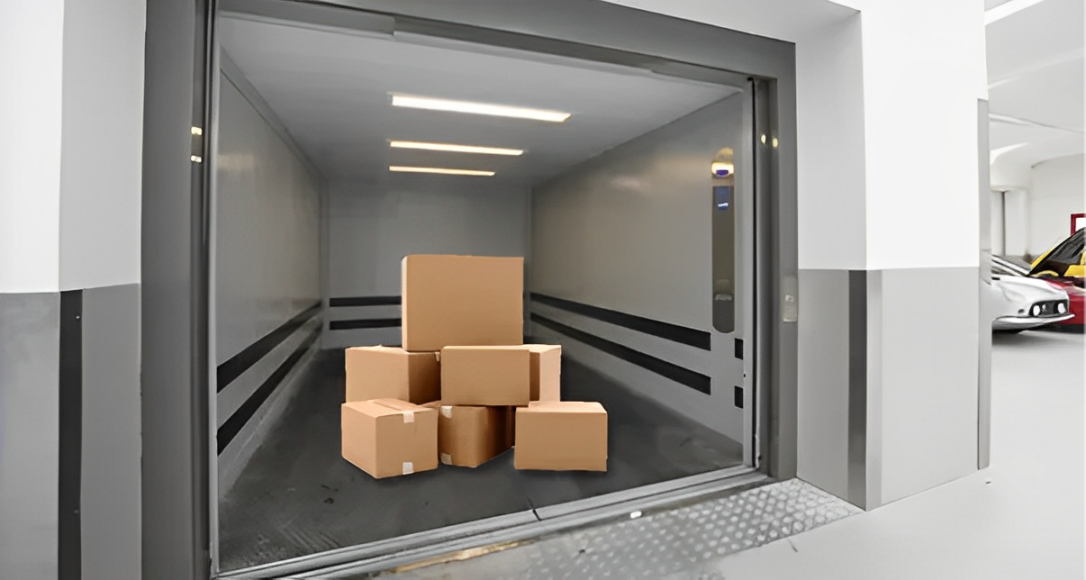

Goods/Freight Elevators

Monarch Goods elevators are engineered for heavy duty performance. They are perfect for warehouses, factories and industrial plants.

Key Features :

  • Monarch Goods Lifts are designed for high load capacity upto 5000 kg.
  • Precision levelling for easy Loading and unloading
  • Durable design for long term reliability

Safety Functions :

  • Micro-levelling: Automatic correction of elevator landing level when there is a level difference between car and floor.
  • Multi-beam door sensor: In the event that the beam paths are obstructed, this sensor, installed at the edge of the doors, will keep the doors open.
  • Emergency Brake release and Manual rescue operations: In the event the elevator is struck in between floors, an emergency brake release device provided in the machine room is used to open the brakes and allow the car to move in a controlled manner and bring it to nearest floor level.
  • Motor Overload Protection: Self-protection mode will be achieved if the temperature of the motor exceeds the preset value due to the heat made by motor itself or the high temperature in the environment. The car stops at the nearest floor, once the temperature falls down to normal, the car will recover.
  • Door load detector: When excessive door load has been detected while opening or closing, the doors immediately move in reverse direction.
  • Emergency exit on Cartop: An emergency trap door in the car roof to permit the rescue and evacuation of passengers.
  • Overload protection with indicator: If the load exceeds the rated load, the sound signal will be given out by speaker and ‘OVERLOAD’ will be displayed, the car door will not close, the elevator will not start. The overload condition is removed when the weight of the car falls below the rated load.
  • CCTV provision: Fiber optic /Co axial / CAT 6E Cable is used for close circuit television monitoring. This system enables the security personnel to monitor the movement inside the elevator.

Operating Features :

  • Simplex collective control: This is fully automatic operation used for a single elevator system. Hall calls in the direction in which the elevator is travelling are responded to sequentially and when all calls in that direction are cleared, calls in the opposite direction are responded to. When there are no more calls, the elevator will stop at the last floor served.
  • Fireman’s operation: During a fire when the fireman’s switch is activated, all car and hall calls are cancelled and the car immediately returns to pre-determined floor. The designed fire lift then responds only to car which facilitates firefighting and rescue operations.
  • Full load bypass: When a car is loaded to a predetermined percentage of capacity, weight sensing devices are activated causing the car to bypass further hall calls.
  • False call cancellation: If the number of registered car calls does not correspond to the car load, all calls are cancelled to avoid unnecessary stops.
  • Building management system: A panel installed inside the engineering room or any other location inside the building helps to monitor each elevator status and operations using indicators.

Information function :

  • Voice Announcement System: Information on elevator service such as current floor or service direction is heard by the passengers inside the car. The system will also make announcement on emergency operations.
  • Arrival chime audio signal: An electrical chime (located at the top and bottom of the elevator) will sound just before the arrival of the elevator.
  • Interphone system: An interphone system is provided for emergency communication between the elevator and the master unit on the ground floor.

Energy-Saving Functions :

  • Regenerative system: When traveling downwards with a heavy car load or upwards with a light car load, the traction machine acts as a power generator to transmit power back to the electrical network in the building.
  • Automatic turn-off of elevator light and fan: In the event that the elevator is not in use, the light and ventilation fan in the elevator are automatically turned off to conserve energy.
  • LED lighting: Use of energy efficient LED lights in cabin helps in reducing electricity consumption and thereby reduces cost of operations.

Service Function :

  • Attendant operation: In this mode. An attendant manually controls the elevator’s movement using the Car operating panel. This allows them to determine the stop floors, control door opening and closing to ensure safe entry and exit and regulate operations to optimize usage during high traffic hours.
  • Fireman’s operation: Door open/close button will be highlighted if the button are pressed.
  • Reopen with Hall call button operation: Closing doors can be opened by pressing the hall button corresponding to the travel direction of the car.

Standard Dimensions
No. of Passengers Load (kg) Speed (m/s) Car Width (CW) Car Depth (CD) Shaft Width (SW) Shaft Depth (SD) Door Opening (DW) Pit depth Min. Headroom height
6 500 0.5 / 1.0 1100 1200 1900 1500 1100 1700 5000
15 1000 0.5 / 1.0 1400 1800 2300 2100 1400 1700 5000
22 1500 0.3 / 0.5 1700 2000 2600 2300 1700 1700 5000
29 2000 0.3 / 0.5 1700 2500 2600 2800 1700 1700 5000
36 2500 0.3 / 0.5 2000 2500 2900 2800 2000 1700 5000
44 3000 0.3 / 0.5 2000 3000 2900 3300 2000 1700 5000
58 4000 0.3 / 0.5 2500 3000 3400 3300 2500 1700 5000
73 5000 0.3 / 0.5 2500 3600 3400 3900 2500 1700 5000
