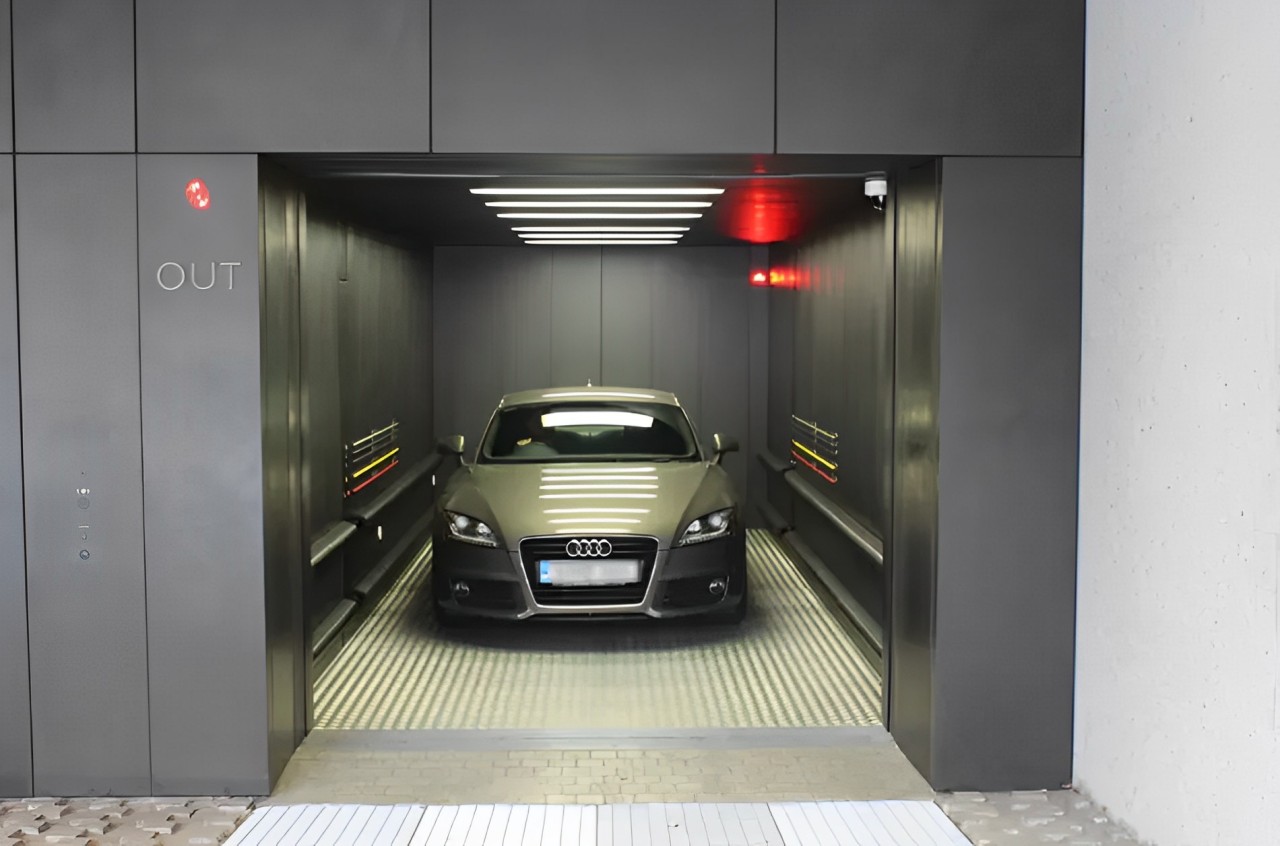

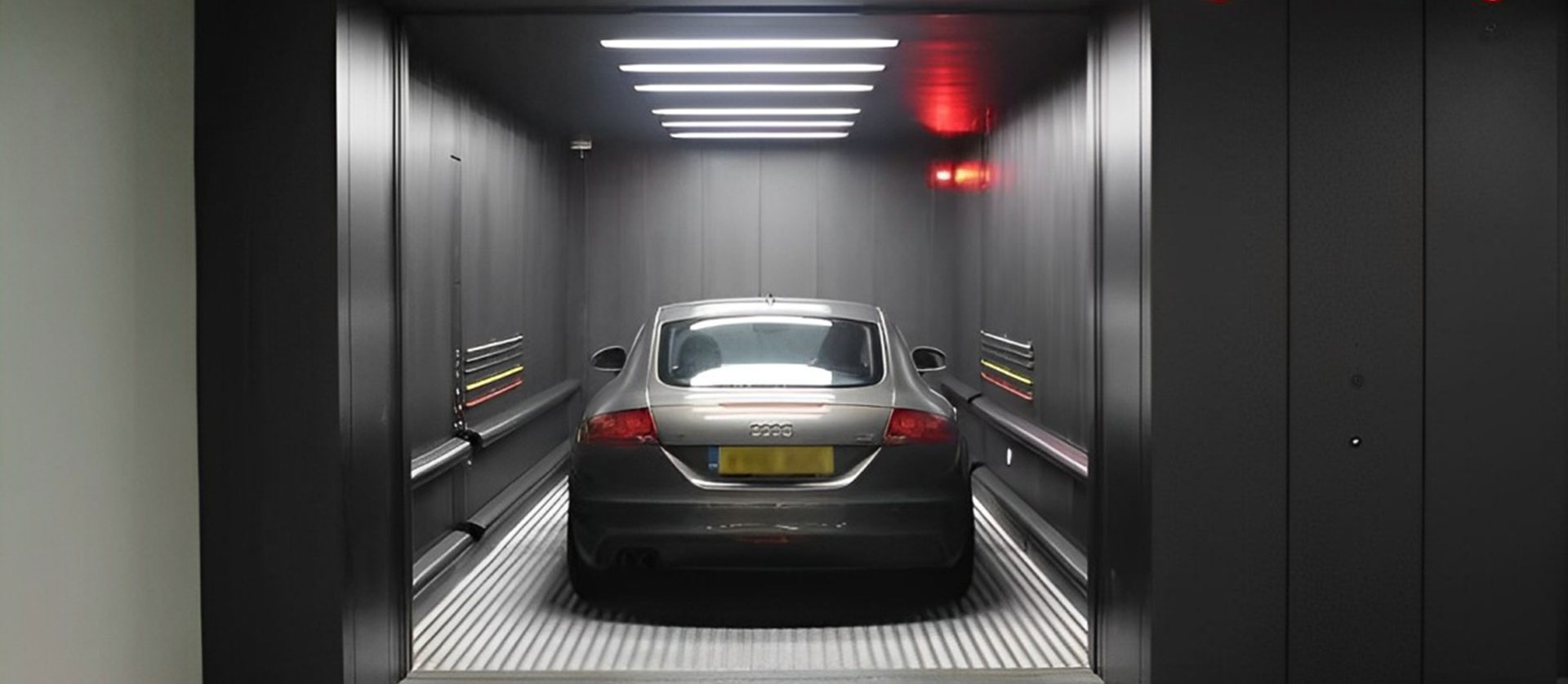

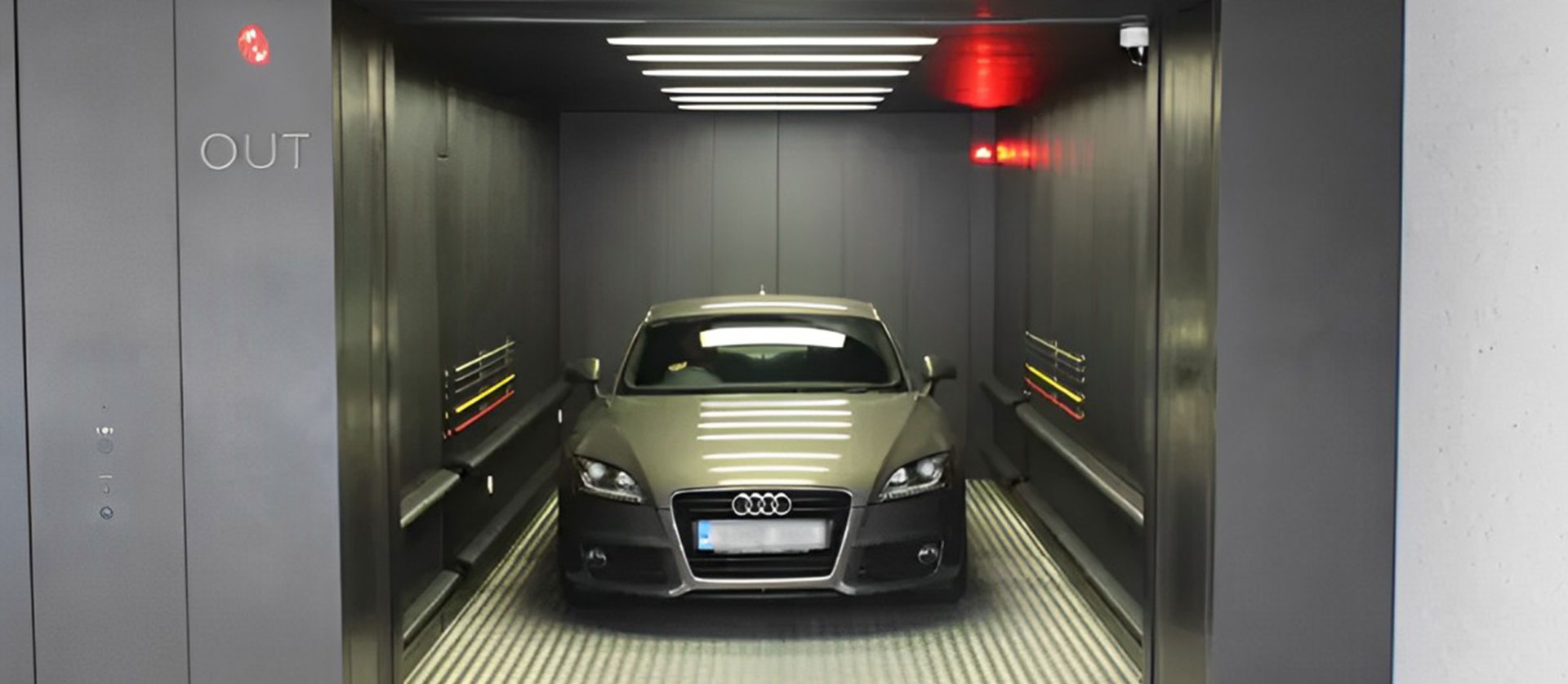

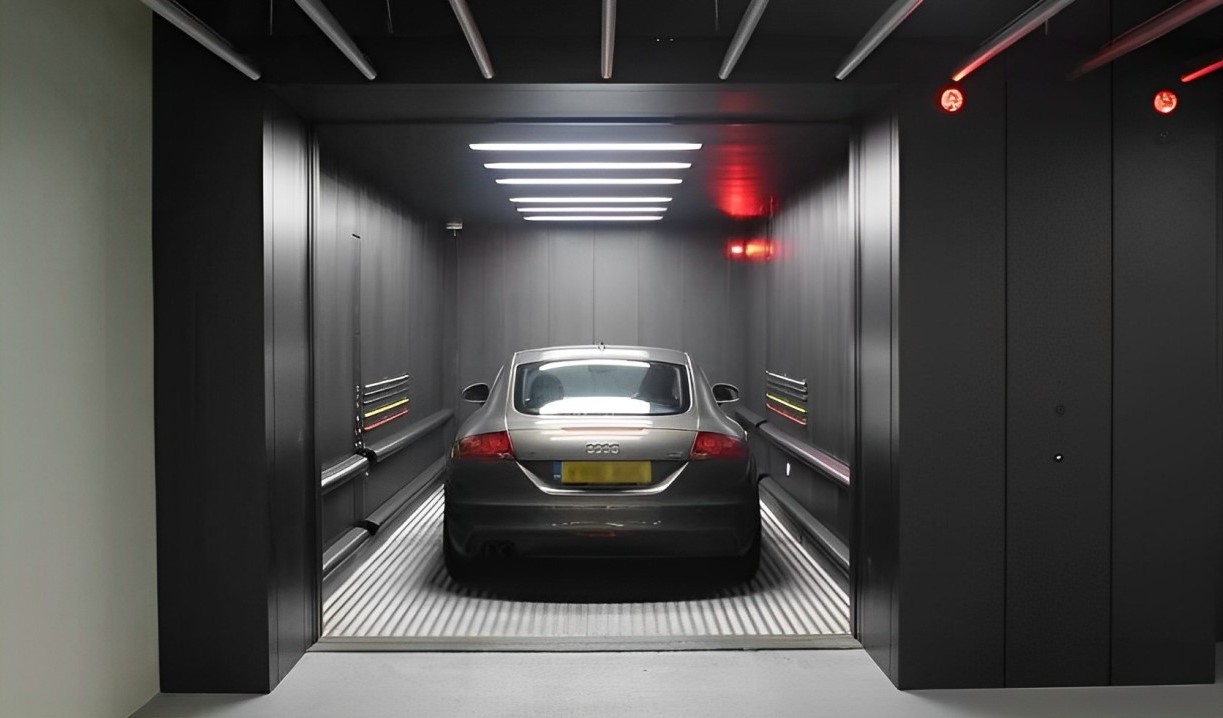

Car / Automobile Elevator:

Monarch car elevators are efficiently design to transport vehicle in showrooms, malls, residential complexes. They have lower average speeds, heavy load capacity and higher factory of safety.

Key Features :

  • High lifting capacity upto 4000 kg.
  • Compact designs for space saving installations.
  • Easy access to rooftop or basement parking without ramps.

Safety Functions :

  • Automatic Rescue operation: When the elevator stops out of the door-open zone, it will move to the nearest floor at slow speed to release passengers in case of power failure.
  • Micro-levelling: Automatic correction of elevator landing level when there is a level difference between car and floor.
  • Emergency Alarm bell and car lighting: In the event of a power failure, this emergency supply from battery allows the operation of a light, fan and alarm bell.
  • Multi-beam door sensor: In the event that the beam paths are obstructed, this sensor, installed at the edge of the doors, will keep the doors open.
  • Emergency Brake release and Manual rescue operations: In the event the elevator is struck in between floors, an emergency brake release device provided in the machine room is used to open the brakes and allow the car to move in a controlled manner and bring it to nearest floor level.
  • Motor Overload Protection: Self-protection mode will be achieved if the temperature of the motor exceeds the preset value due to the heat made by motor itself or the high temperature in the environment. The car stops at the nearest floor, once the temperature falls down to normal, the car will recover.
  • Door load detector: When excessive door load has been detected while opening or closing, the doors immediately move in reverse direction.
  • Emergency exit on Cartop: An emergency trap door in the car roof to permit the rescue and evacuation of passengers.
  • Overload protection with indicator: If the load exceeds the rated load, the sound signal will be given out by speaker and ‘OVERLOAD’ will be displayed, the car door will not close, the elevator will not start. The overload condition is removed when the weight of the car falls below the rated load.
  • Access control: Our elevator integrated advance Access control systems to ensure that only authorized individuals can access specific floor or areas making our solution ideal for high security facilities. Necessary dry contacts shall be provided for interphase with access control system.
  • CCTV provision: Fiber optic /Co axial / CAT 6E Cable is used for close circuit television monitoring. This system enables the security personnel to monitor the movement inside the elevator.

Operating Features :

  • Simplex collective control: This is fully automatic operation used for a single elevator system. Hall calls in the direction in which the elevator is travelling are responded to sequentially and when all calls in that direction are cleared, calls in the opposite direction are responded to. When there are no more calls, the elevator will stop at the last floor served.
  • Next landing operation: If the Elevator do not open fully at destination floor, the door closes and the car automatically moves to the next or nearest floor where the doors will open.
  • False call cancellation: If the number of registered car calls does not correspond to the car load, all calls are cancelled to avoid unnecessary stops.
  • Main floor parking: An available car always parks on the main floor with the doors open to reduce the passenger waiting time.
  • Building management system: A panel installed inside the engineering room or any other location inside the building helps to monitor each elevator status and operations using indicators.

Service Function :

  • Attendant operation: In this mode. An attendant manually controls the elevator’s movement using the Car operating panel. This allows them to determine the stop floors, control door opening and closing to ensure safe entry and exit and regulate operations to optimize usage during high traffic hours.
  • Door Open/Close button light: Door open/close button will be highlighted if the button are pressed.
  • Reopen with Hall call button operation: Closing doors can be opened by pressing the hall button corresponding to the travel direction of the car.

Information Function :

  • Voice Announcement System: Information on elevator service such as current floor or service direction is heard by the passengers inside the car. The system will also make announcement on emergency operations.
  • Arrival chime audio signal: An electrical chime (located at the top and bottom of the elevator) will sound just before the arrival of the elevator.
  • Interphone system: An interphone system is provided for emergency communication between the elevator and the master unit on the ground floor.

Energy-Saving Functions :

  • Regenerative system: When traveling downwards with a heavy car load or upwards with a light car load, the traction machine acts as a power generator to transmit power back to the electrical network in the building.
  • Automatic turn-off of elevator light and fan: In the event that the elevator is not in use, the light and ventilation fan in the elevator are automatically turned off to conserve energy.
  • LED lighting: Use of energy efficient LED lights in cabin helps in reducing electricity consumption and thereby reduces cost of operations.

Standard Dimensions
Load (kg) Speed (m/s) Car Width (CW) Car Depth (CD) Shaft Width (SW) Shaft Depth (SD) Door Opening (DW) Pit depth Min. Headroom height
2500 0.5 / 1.0 2300 5500 3800 6500 2300 X 2100 1800 5000
2500 0.5 / 1.0 2500 5700 4000 6700 2500 X 2100 1800 5000
3000 0.5 / 1.0 2600 5800 4100 6800 2600 X 2100 1800 5000
3000 0.5 / 1.0 2800 5800 4300 6800 2800 X 2100 1800 5000
4000 0.5 / 1.0 2800 6000 4300 7000 2800 X 2100 1800 5000
