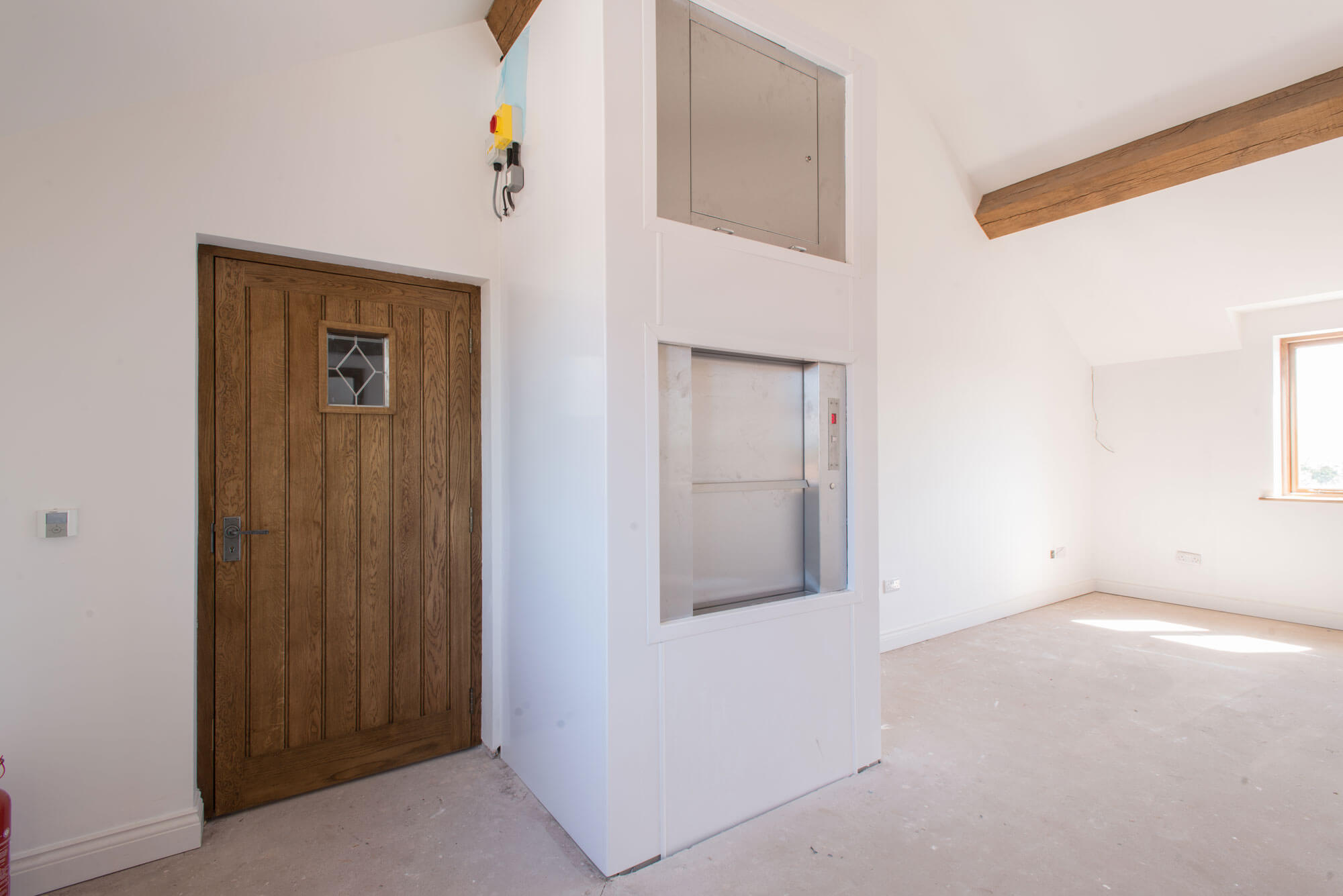

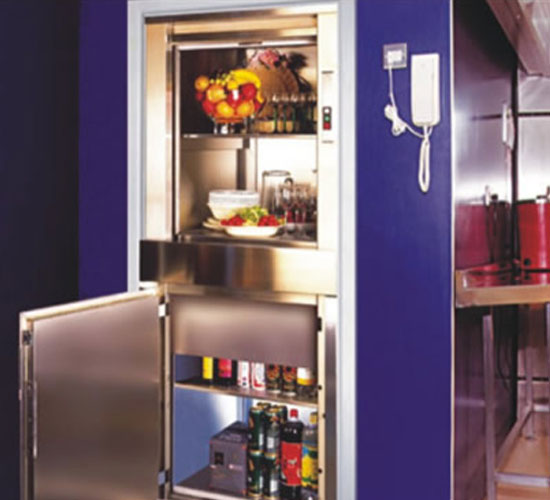

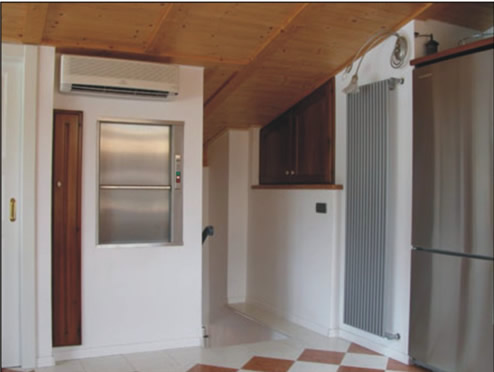

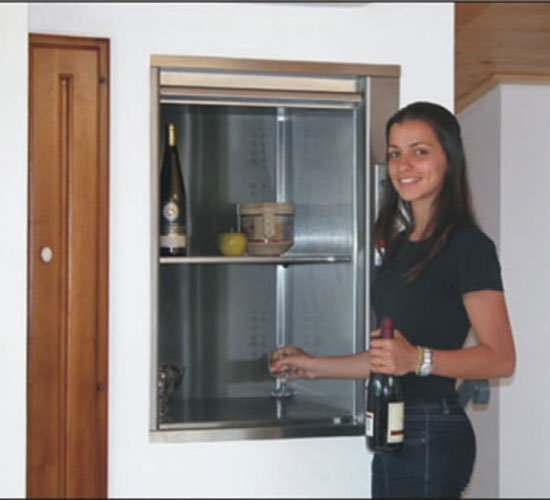

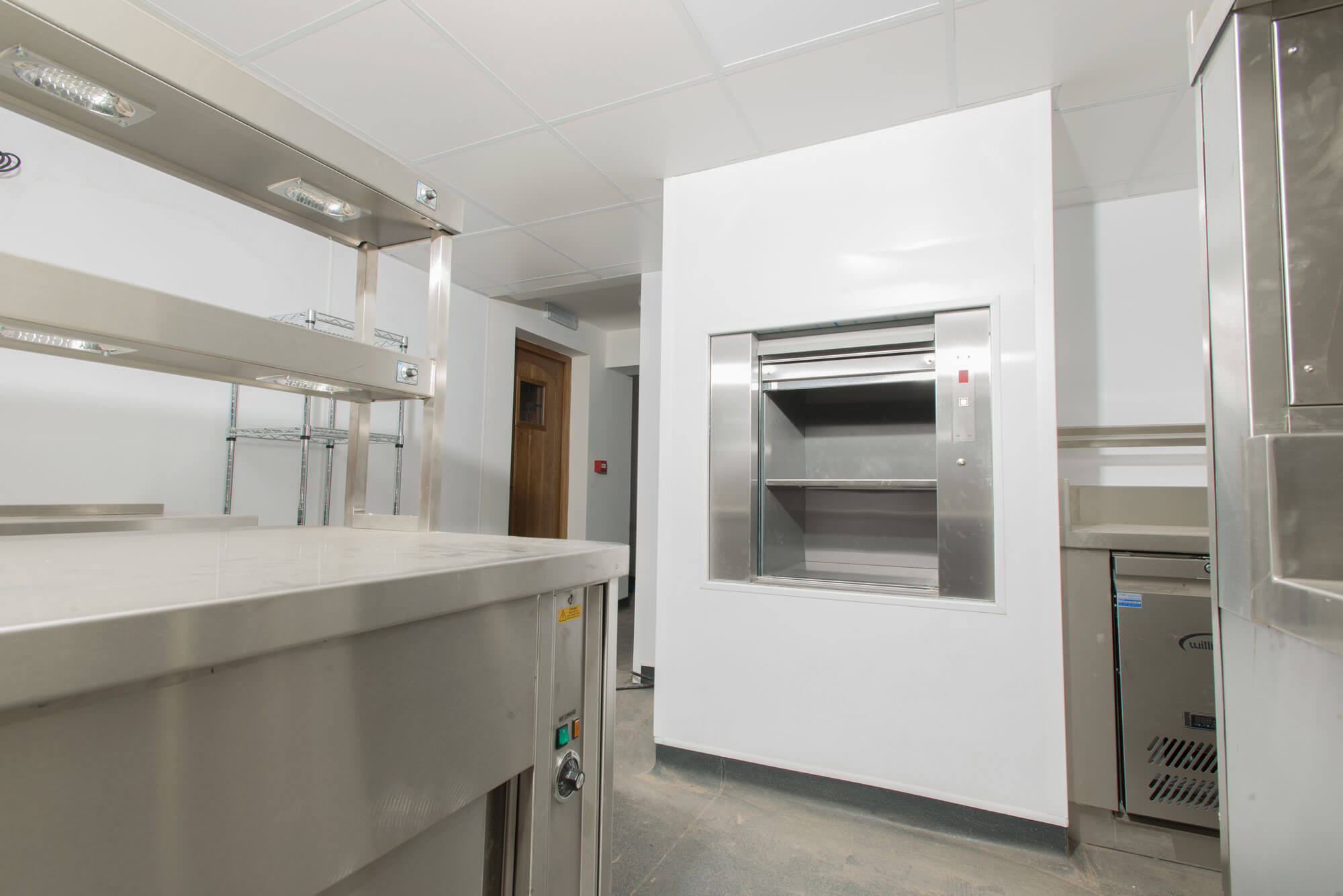

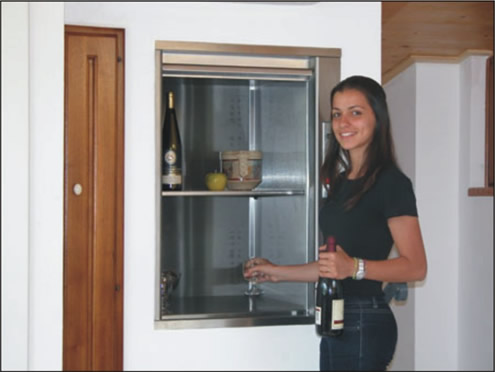

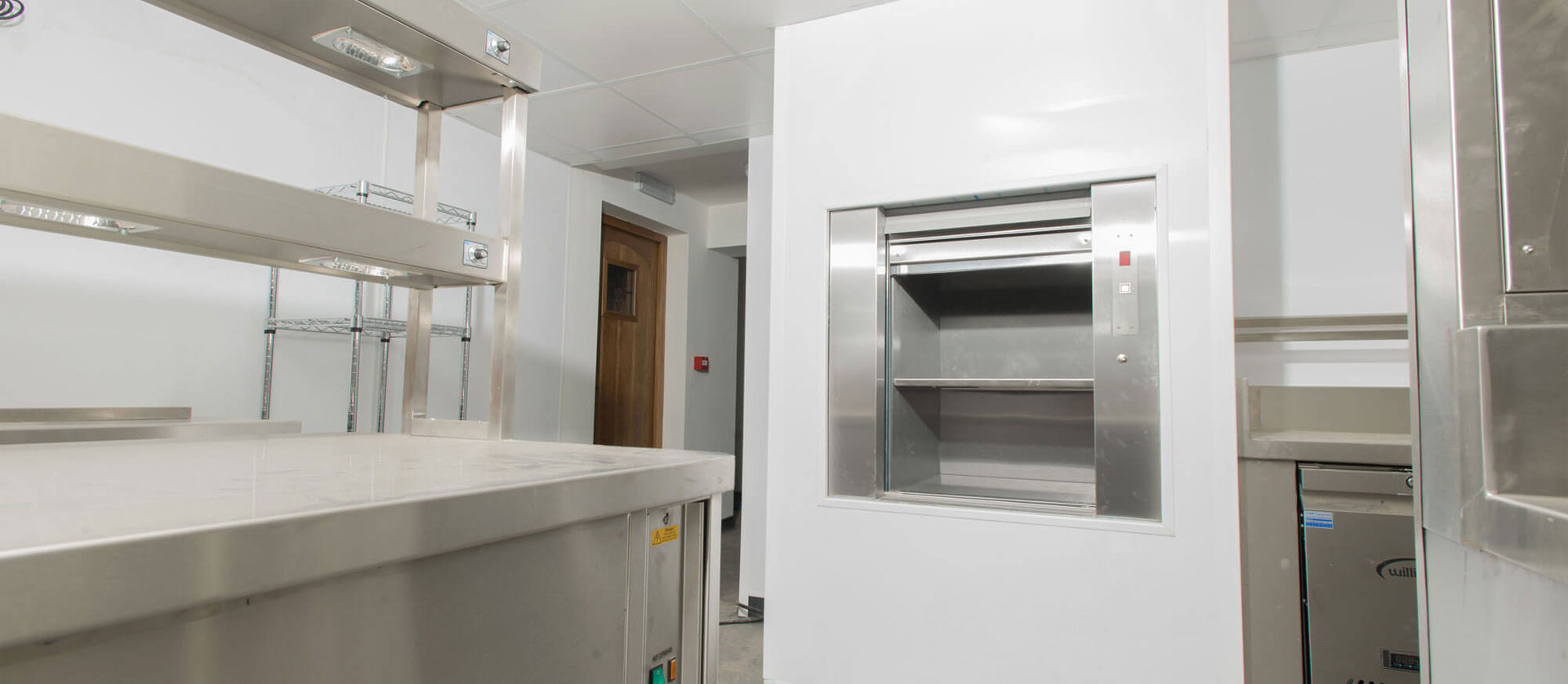

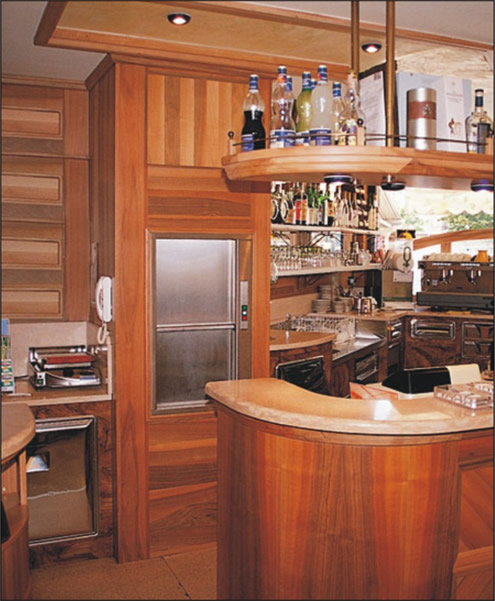

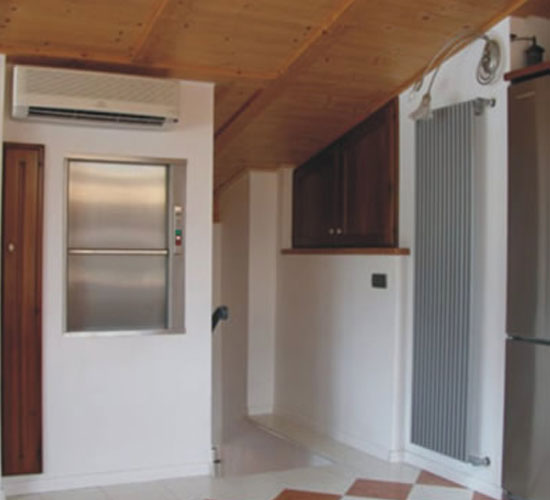

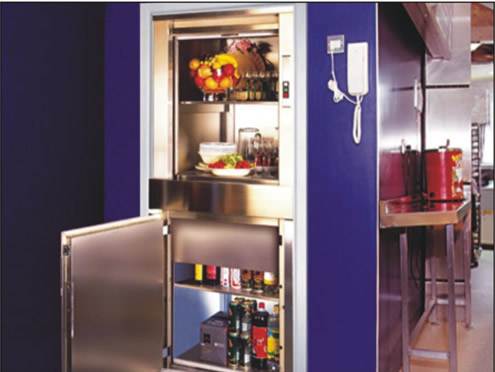

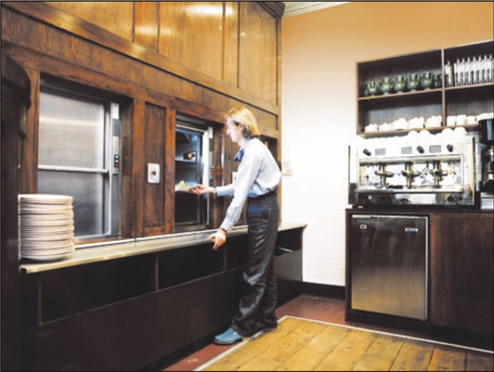

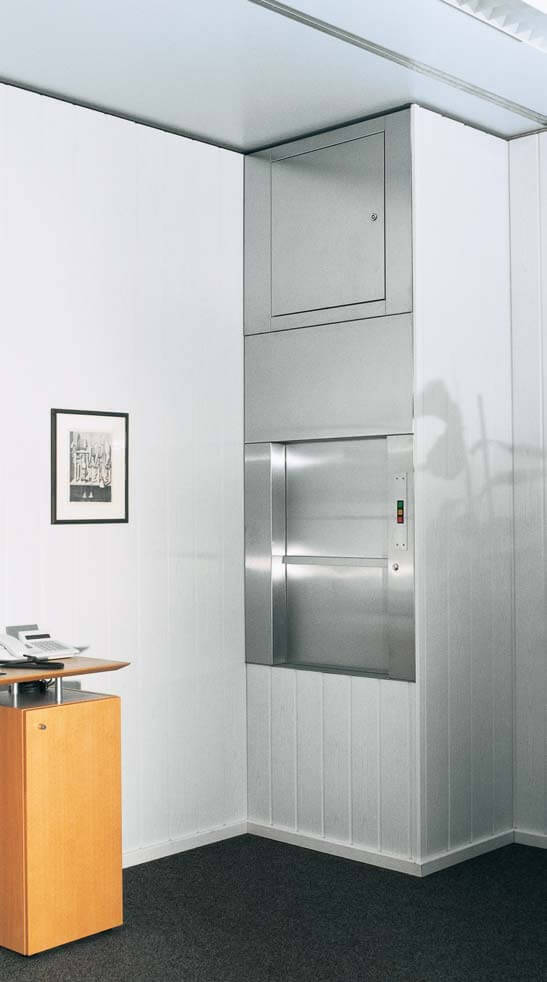

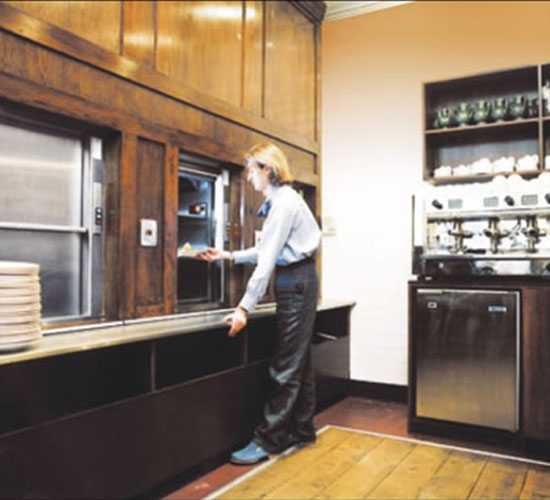

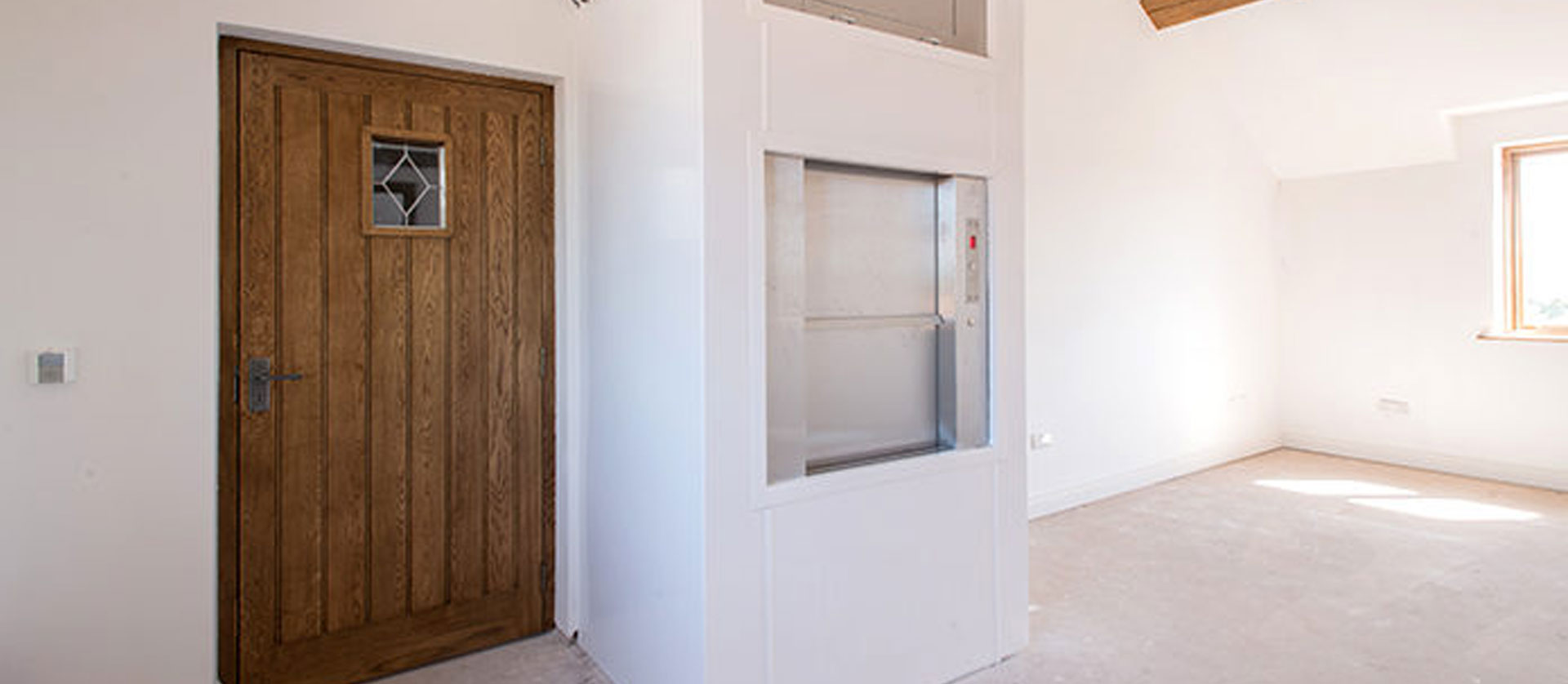

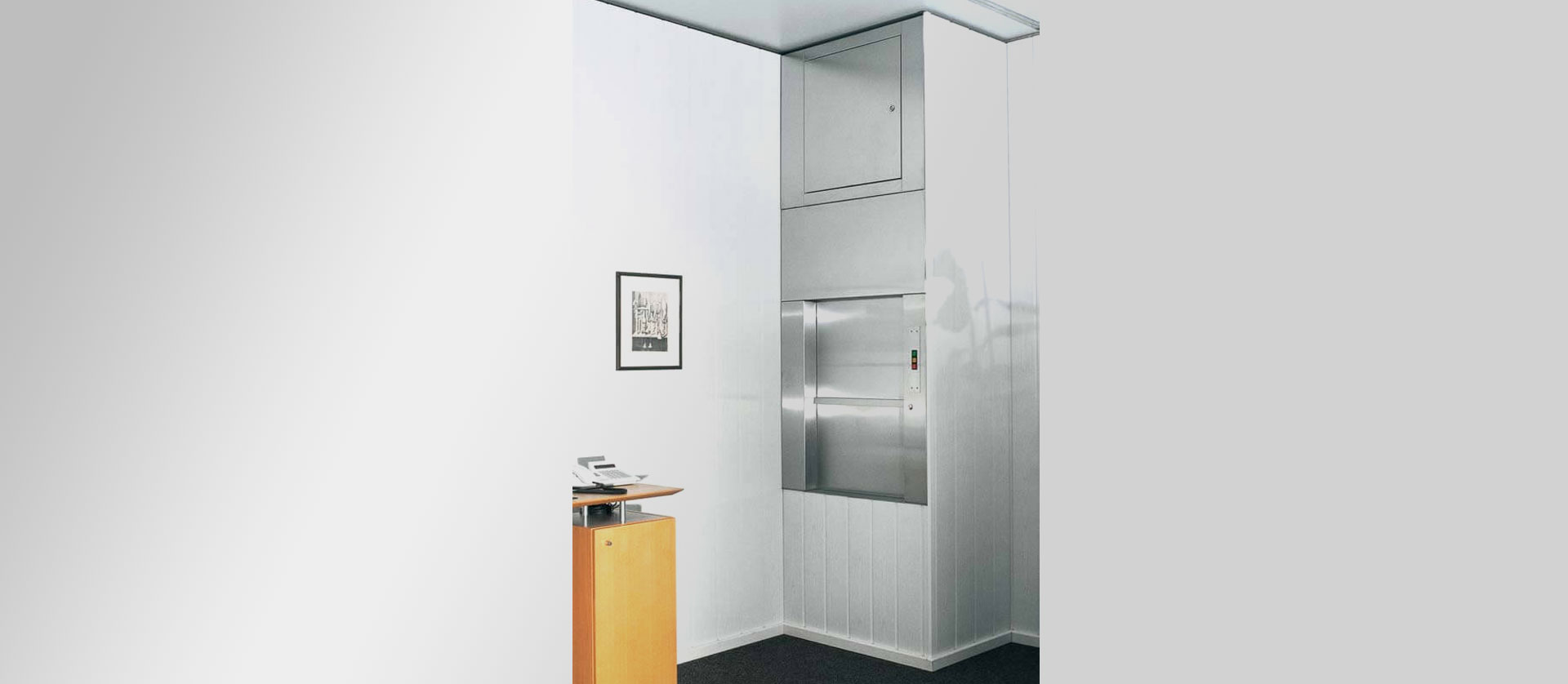

Dumbwaiter Elevator

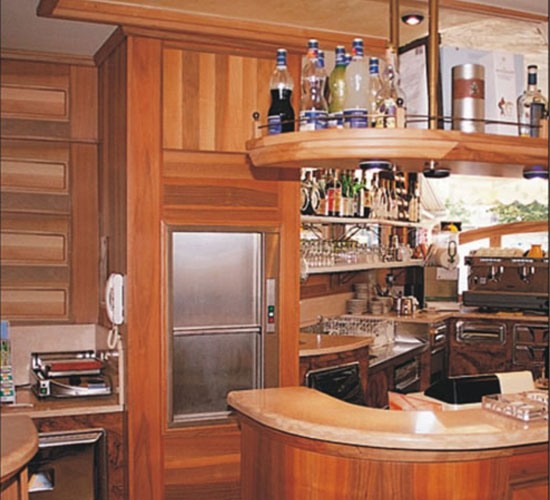

Monarch Dumbwaiter are ideal solution for vertical transportation of small goods at restaurants, hotels, penthouses, bungalows and clubhouses. It typically ranges from 50 to 250 kgs with speed varying from 0.3 to 0.5 mps for quick transport. It can be configured up to 50 floors in any building. It is constructed by stainless steel interiors and doors for durability and hygiene.

Key Features :

Compact and efficient vertical transportation
Durable design with low maintenance requirements.
Energy efficient motor systems and led lighting for reduced energy consumption
Ease of operation with fully automated control panels and simple user interface
Safety features like Overload indicators and Electromechanical interlocks on doors to prevent accidents during operation.

Technical Specifications :

Capacity: Range between 50 to 300 Kgs in increment of 50 Kgs.
Speed: Standard 0.25 MPS, higher speed available on customer requirements.
Drive Unit: Traction Drive, High quality reduction worm gear coupled with motor & magnetic disc brake and handwheel.

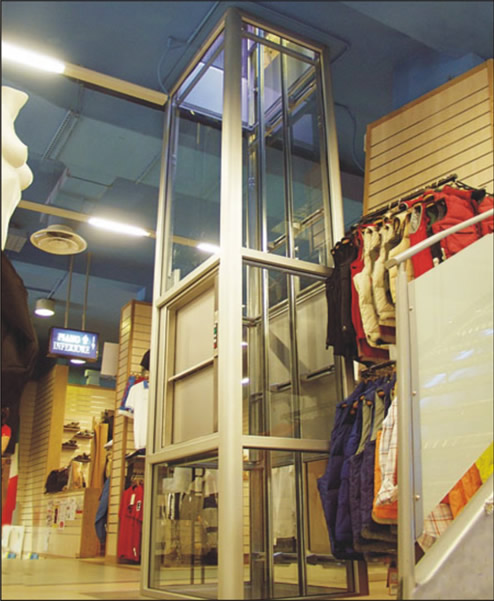

Hoistway: R.C.C./Brickwall made by client or painted/zinc plated structure made of CR sheet profiles/Angles pre mounted in 2.5 mt. Long section on request,
Cabin: Made of Stainless Steel sheet, MS sheet, Powder Coated/ galvanised, centered suspension, guided on both sides. Cars provided with removable self, and without door.
Landing Doors: Made of Stainless Steel sheet, MS sheet, Powder Coated/ galvanised,
- Vertically opening Bi-parting/single sliding
- Single or Double hinged & wing door
Control:
- 24 Volt in all push buttons
- Call despatch on each landing
- Arrival buzzer and call signal
- Position indicator on each landing
- Over current protection
- Overload Indicator available on request
Machine Room: No extra machine room is required for housing our machine, it can be fitted within height of top floor or within self supporting structure.
Compliant: our (service lift/dumb waiter) available in full compliance of 15 14665 of 2002.
